Liquids dosing

Piping and piping accessory for the transport of liquids such as sourdough (rye, wheat), liquid yeast, oil, fat, syrup, bread cream, etc. to one or several target points (kneaders, drain,…)


NOTE: Ring pipe systems are necessary due to goods storage and dosing accuracy in pipes of greater length! Likewise, for some raw materials, heated or cooled and insulated piping must be installed. In some cases it is recommended to use CIP cleaning systems or pigging systems.


Basic technical information

Conveyed material:

rye sourdough, wheat sour dough, wheat predough, bread cream, yeast solution, oil, brine, milk, liquid egg, glucose, syrup, liquid ice or others

Conveying to:



storage tanks, scales, hoppers

Target points:mixer, dust aspiration cover or manual outlet
Pipeline diameter:1/2“, 3/4“, 1“,50/60/70/80/90  mm
Pipeline type:norm, heated, cooled, insulated
Discharge type:pump or gravitation
Ring pipe (circle):depending on application
Drain connection:for cleaning purpose
Pipeline construction material:stainless steel AISI 304 or 316

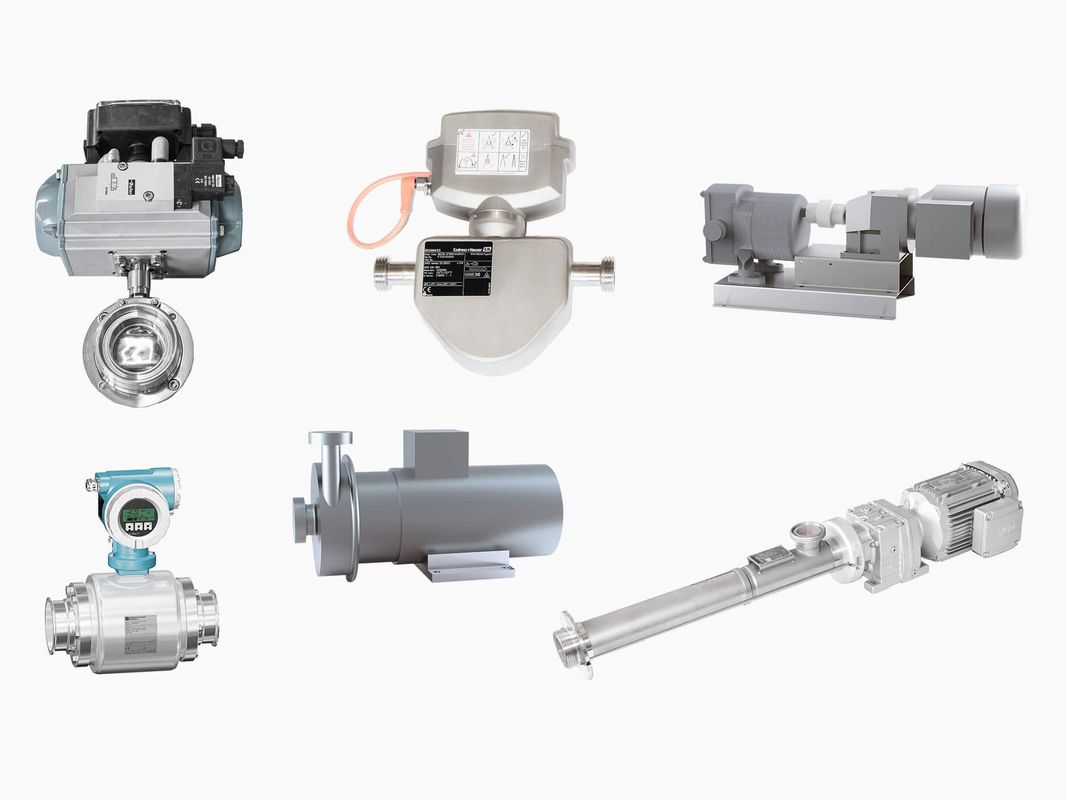

Pump type:according to conveyed material and calculation
Dosing counter type:according to conveyed material and calculation
Valve type:according to conveyed material and calculation
Control:with facility control system
Option:CIP and/or pigging system

General function

The transported material will be conveyed from the production- or storage containers, either by means of gravitation or by a pump via piping to one or several target points.


Construction

The piping and piping parts are made of stainless steel, which is food-proof, rust and acid resistant, as corresponding to hygiene regulations. So are the corresponding components and producttouching parts.
