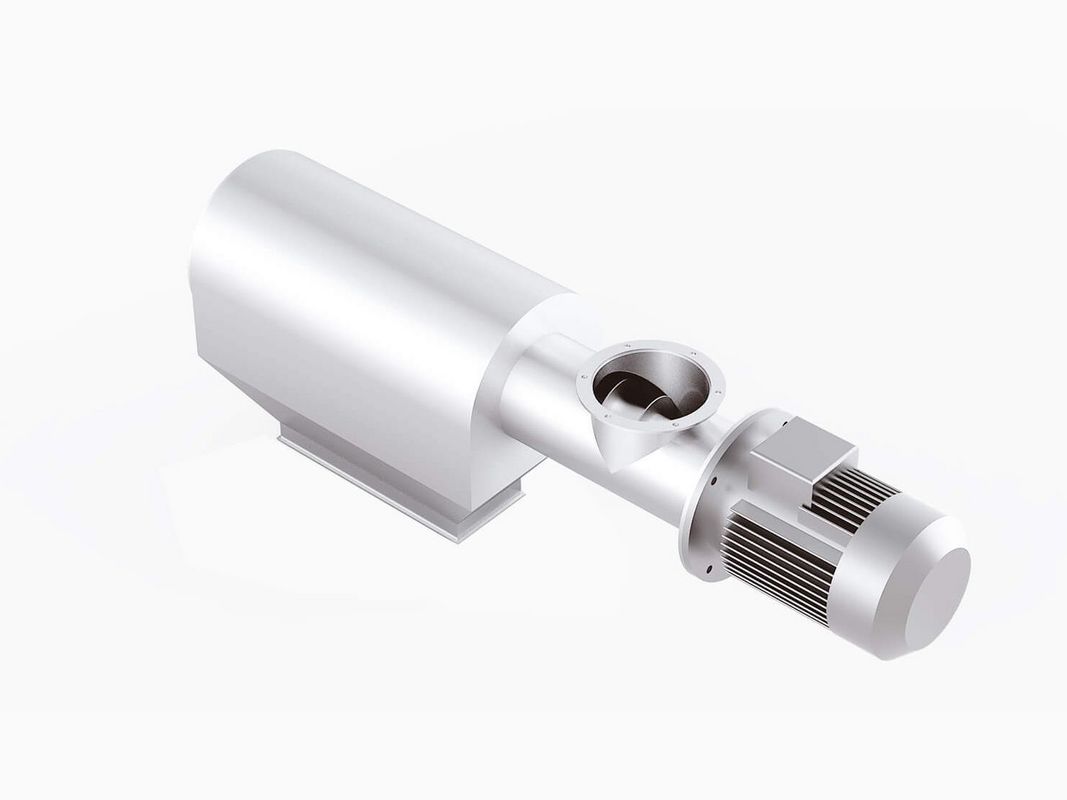

Rotary sifter

Hopper rotary sifter for usage before the mixer or, after the silo before the rotary valves.


Basic technical information

Transport capacity:

4-6 to/h

Length:



1000mm

Width:



1280mm

Heigth:1320mm
Construction material:stainless steel
Screens:different mesh sizes from 1 to 2mm
Debris unloading:in bags or automatically
Operation type:pressure-less
Drive:1,1kW

General function

A screw doses the material in the sifter-screen cylinder. The Material gets sifted and the debris is transported to the front of the sifter. There the debris will be unloaded to bags or automatically with shut-off valves.


Construction

Stainless steel design. Also available in swiveling version, mounted below weighing hoppers.
