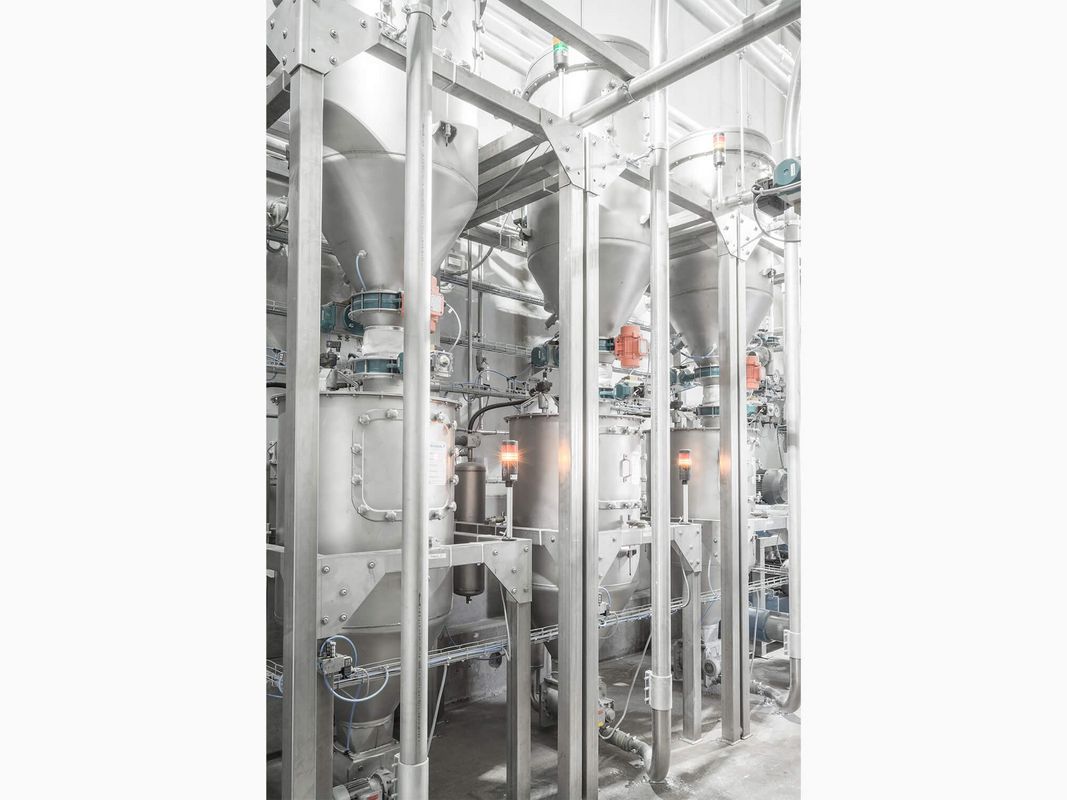

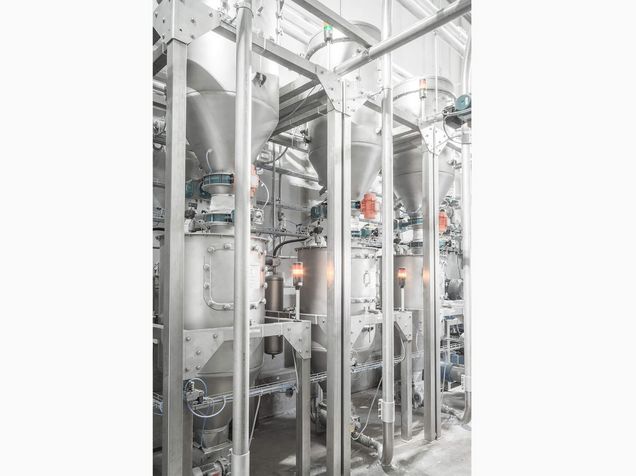

Central weighing station

Automatic weighing, storage and safe, quick discharge of powdery, grainy or ground products from silos, bag dumping stations, Compo, big-bag stations via electro-pneumatic shut-off valve and swivel pipe or two-three-way separators into dust aspiration hoods or kneaders.


Basic technical information

Storage capacity

150, 200, 250,300 350 kg

Weighing hopper dimension:



800 - 1.000 mm

Weighing hopper height:



according to capacity

Storage content:bulk ingredients - powdery, crystalline, grainy
Construction material:stainless steel
Discharge type:60° cone and vibration unit or fluidised bed
Outlet dimension:200, 250 oder 300 mm
Filter type:suction-pressure jet filter 300/600 mm
Weighing cells:triple-point weighing
Swivel pipe:option
Temperature sensor:PT100 or excluded
Suspension:wall mount, ceiling mount, frame/floor mount
Two-way outlet disverter:option
Outlet connection:flexible tube, discharge pipe, two-way outlet diverter, swivel pipe, rotary sifter, dust aspiration hood, mixer

General function

Container scale for pneumatic filling. Depleting over drain pipe, swivel pipe or two-way drain pipe diverter. Compressed air for jet filters is to be supplied by the customer, on-site.


Construction

Product-related parts, container frames and frame mounts, if applicable container base frame are made of stainless steel. The filter permeability is below 5 mg/m³ air mass.
