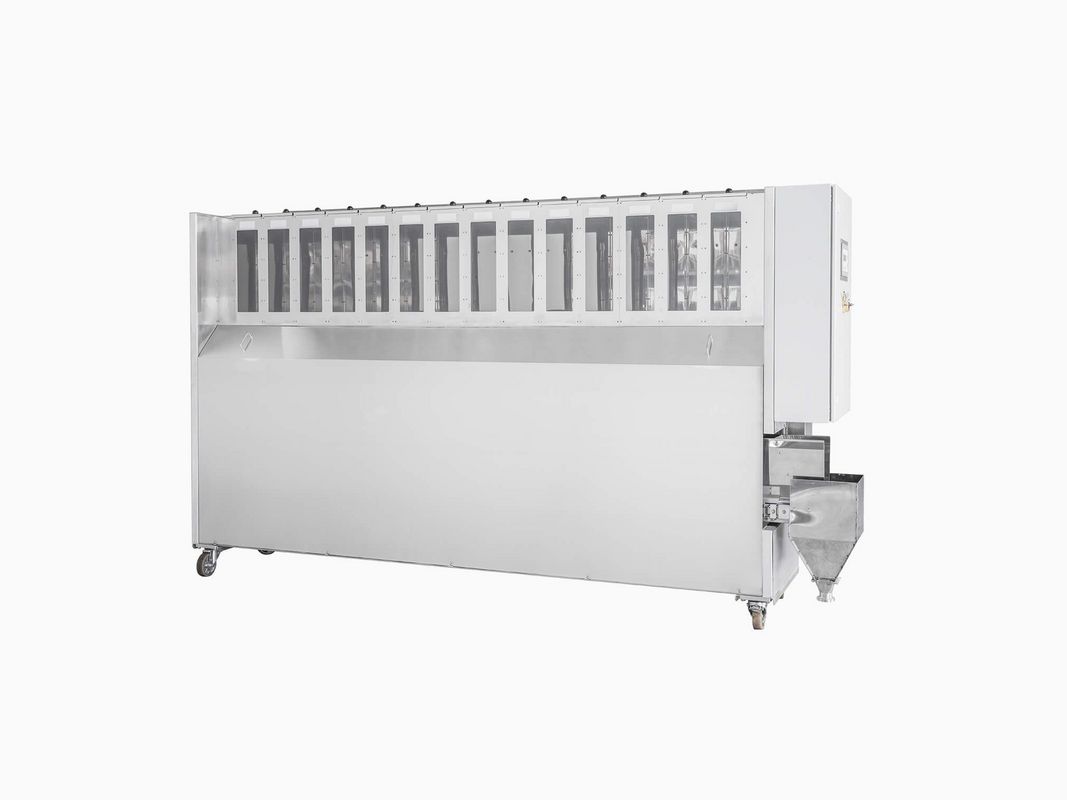

Compo 2500/3000

Automated ingredient dosing and weighing of several components such as powdery, coarse meal, crystalline, grainy products like salt, sugar, additives and spices with computer-controlled recipe processing. The storage hoppers are manually filled with bags. The ingredient dispenser doses and weighs the ingredients according to the recipe with a high accuracy of several grams and collects them as a Batch in a container or pneumatically conveys the batch to remote discharge points.






Basic technical information

Length:

3760 mm

Width:



750 mm

Height:



1880 mm

Storage capacity:14 containers, each 60 litres
Construction material:stainless steel/aluminium
Discharge type:vibro-discharge, 0.085 kW
Dosing via:conveyor belt and bowl (Compo 2500) up to 20 litres or sending hopper (Compo 3000) for pneumatic conveying
Dosing accuracy:10 to 15 grams
Dosing quantity/component:up to 10 litres
Total dosing quantitiy:up to 20 litres
Discharge rate:2 - 10 kg/min (depending on material type)
Belt operating time:adjustable
Filling:bag dumping over platform
Dust aspiration:exclusive, central or integrated
Installation:completely preinstalled and wired
Recipe control:exclusive, backcontrol

General function

The ingredients are stored in the Compo containers and automatically dosed onto the integrated conveyor scale. After weighing and dosing of all the recipe’s components, the conveyor scale delivers the ingredients automatically to the ingredient bowl or in case of Compo 3000 to a sending hopper for a pneumatic conveying line.


Construction

Frame construction:stainless steel/aluminium mobile
Container construction:polished stainless steel with inspection glasses
Conveyor belt:4-point digital scale
Switchboard:coated steel (built-in)
Platform construction:aluminium with stairs
Filling vessel:stainless steel with coarse pre-sieve
Control system:Built-in PLC, plug-in ready equipment, external control
Conveying system:Compo3000 - pneumatic conveying with sending hopper, rotary valve and blower (separate offer positions)
