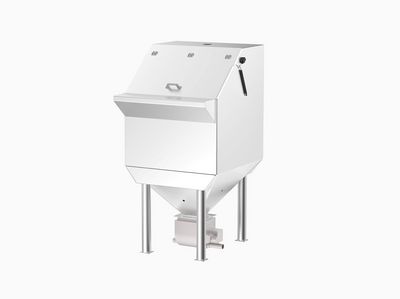

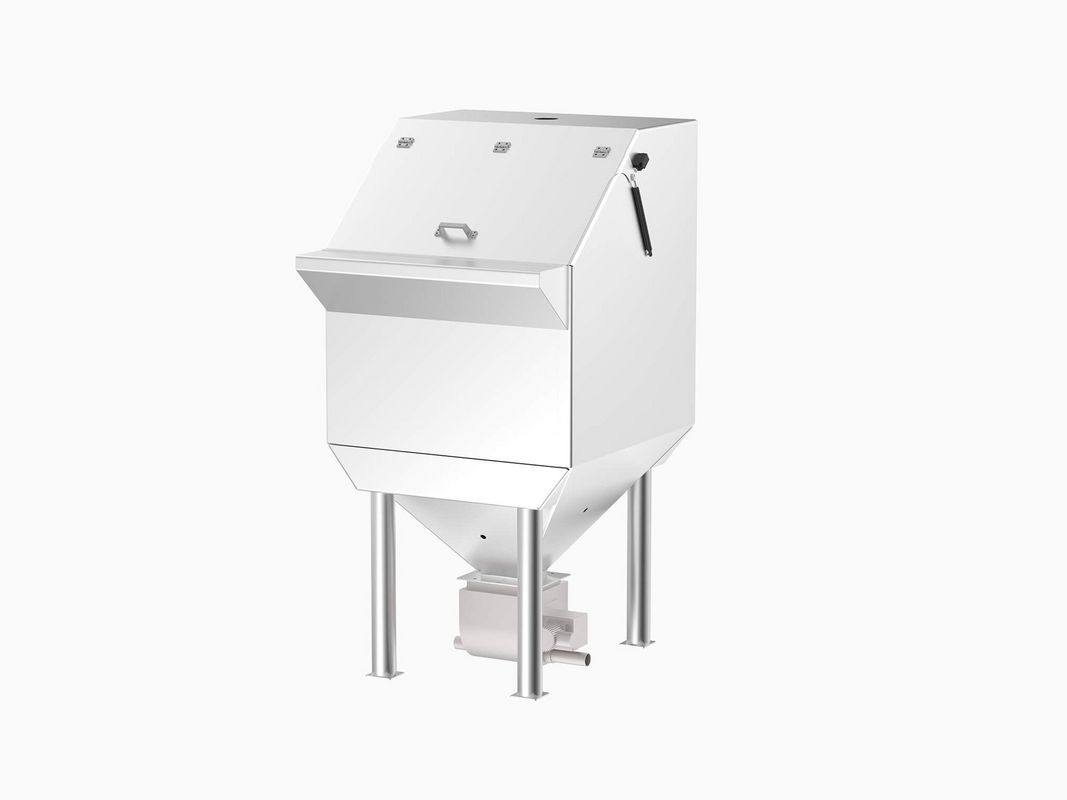

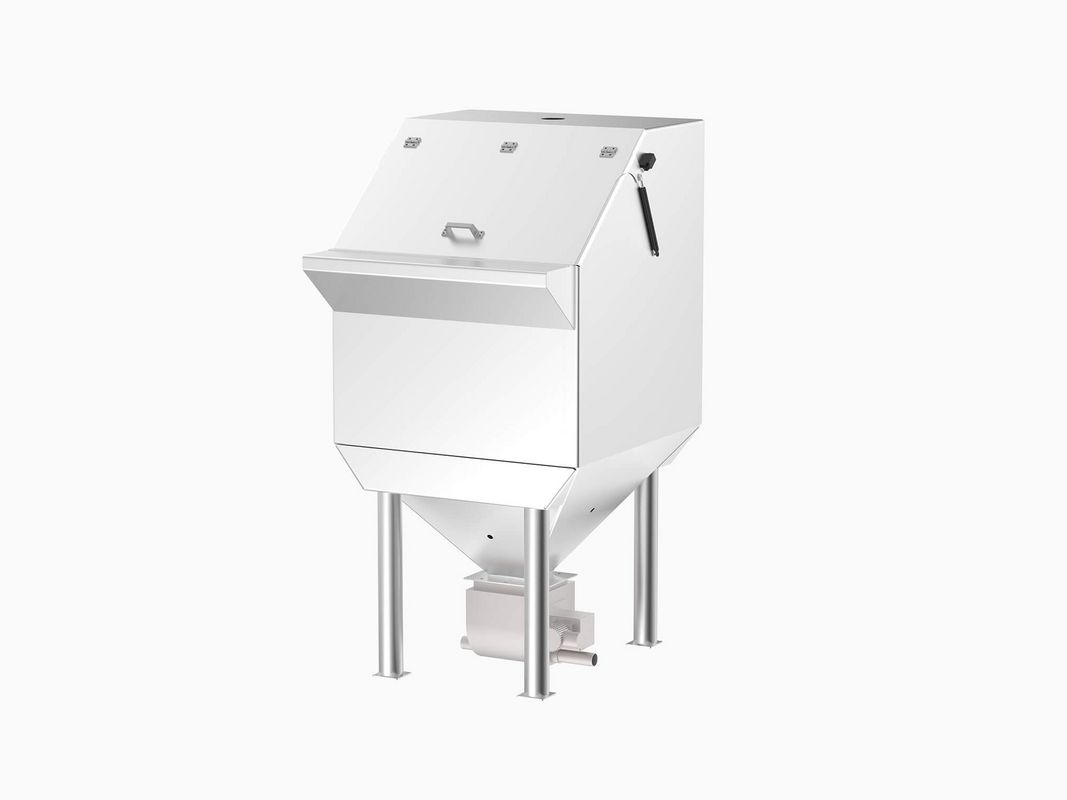

Bag dumping stations - SE15

Hopper for storage and discharge of powdery, coarse meal, crystalline and grainy products like salt, sugar, flour, bakery improvers, shreds and grains from bags with rotary valve or conveying screw. Utilized for filling of silos, weighing hoppers, containers or feeding soaking-tanks or sourdough machines.

Available as day-stock-silo, or storage container for middle components, up to 4000l capacity.


Basic technical information

Width:

1.000 - 1.500 mm

Depth:



1.000 - 1.500 mm

Height:



1.600 mm

Storage capacity:approx. 500-2.000 kg
Total volume:1,0 - 4,0 m³
Construction material:

stainless steel

AISI 304 oder 316

Storage commodity:powdery, coarsely meal, crystalline or grainy products
Discharge capacity:fluidised bed discharge, single-, double- or tripple 0.5 - 5 to/H
Intended use:filling of silos, filling of weighing hoppers or filling of containers
Dust aspiration: attached filter with aspiration or external filter with piping to central aspiration
Standard accessories:bag rest grid/presieve and pedestal/platform
Pedestal height:according to storage capacity
Options:emty level indicator

General function

The raw materials delivered in bags are depleted directly into the bag dump on a coarse presieve. The further conveying of the storage commodity takes place pneumatically through a blow-through rotary valve and blower in vacuum- or pressure mode. The extraction can be in plain-, double- or tripple design, to supply up to 3 parallel operating pneumatical conveying lines.


Construction

Material: Parts in contact with the product are finished in stainless steel. A presieve grid serves as bag rest. If an aspiration system is attached, it is activated by an end-switch at the cover. The dust is exhausted through the aspiration pipe to a central filter or absorbed directly through an attached filter.

Discharge type: Fluidised bed discharge with bulking/aeration or, according to stored commodity, with vibropads and vibration motors.
