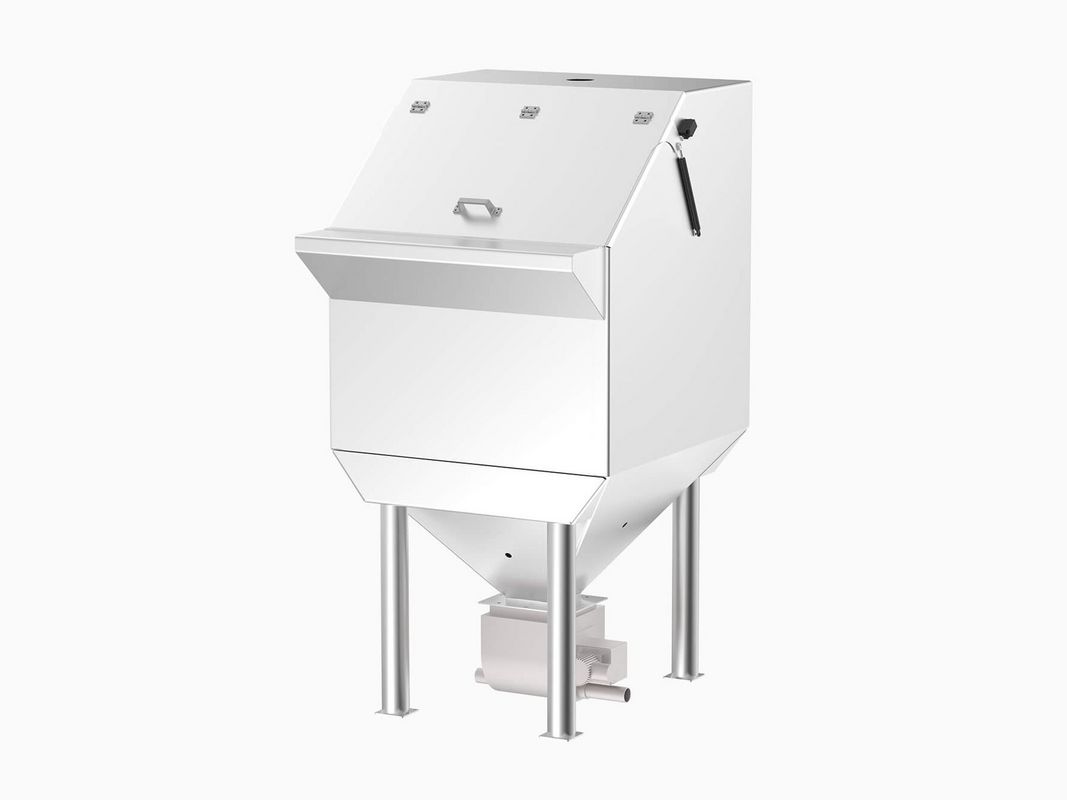

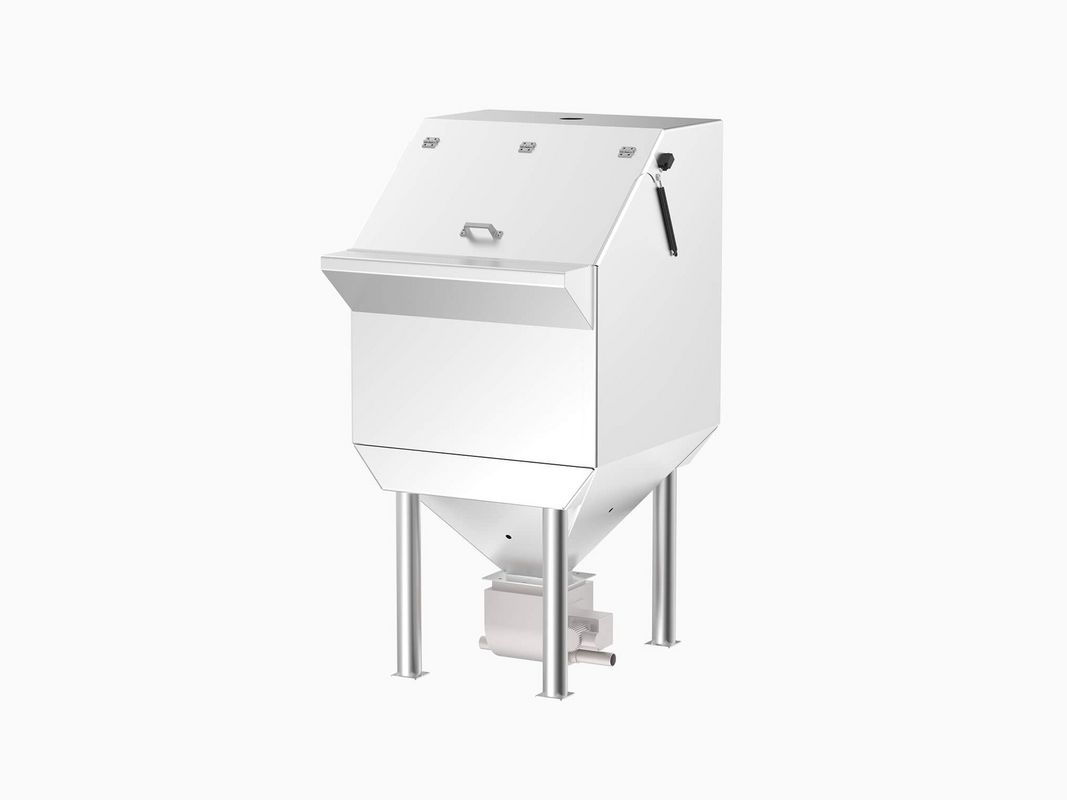

Bag dumping stations - SE10

Hopper for storage and discharge of powdery, coarse meal, crystalline and grainy products like salt, sugar, flour, bakery improvers, shreds and grains from bags with rotary valve or conveying screw. Utilized for filling of silos, weighing hoppers, containers or feeding soaking-tanks or sourdough machines.

Available as day-stock-silo, or storage container for middle components, starting from 300l capacity.


Basic technical information

Width:

1.000 mm

Depth:



1.000 mm

Dumping height:



approx. 1.600 mm

Storage capacity:approx. 200-500 kg
Construction material:stainless steel AISI 304 or 316
Storage content:powdery, coarsely meal, crystalline or grainy products
Discharge capacity:0.5-5 to/h
Intended use:filling of silos, filling of weighing hoppers, filling of containers and sourdough machines
Dust aspiration:attached filter with aspiration, external filter with piping to central aspiration
Standard accessories:bag rest grid/presieve pedestal/platform
Pedestal height:according to storage capacity
Discharge support devices:vibraton motor, vibropads or according stored commodity
Options:empty level indicator, pneumatic beater

General function

The raw materials delivered in bags are depleted directly into the bag dump on a coarse presieve. The further conveying of the storage commodity takes place pneumatically through a blow-through rotary valve and blower (in vacuum- or  pressure mode) or mechanically with a screw conveyor.


Construction

Material: Parts in contact with the product are finished in stainless steel. A presieve grid serves as bag rest. If an aspiration system is attached, it is activated by an end-switch at the cover. A dust filter is integrated in the back upper part of the bag dump. The dust is absorbed or exhausted through this filter.

Discharge  type:  Cone discharge with vibration motor or vibro- pads. The rotary valve or the screw conveyor is an extra offer  item.
