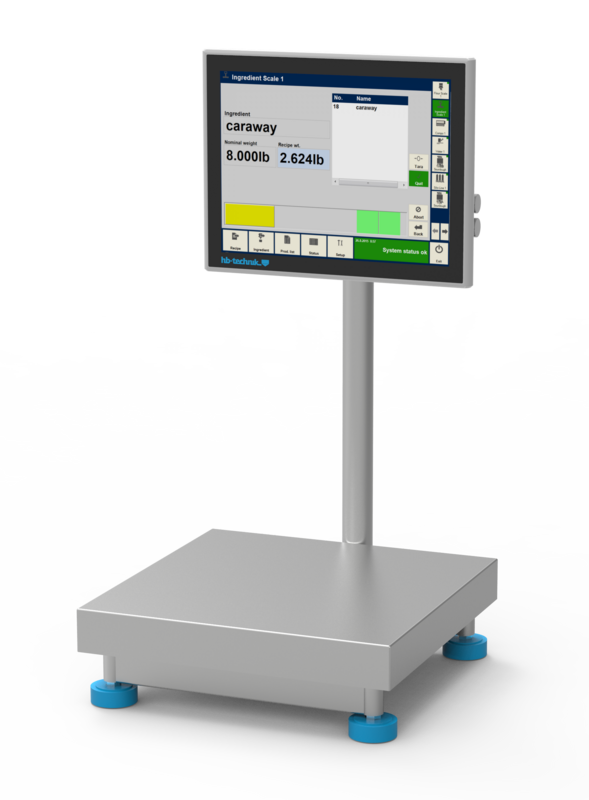

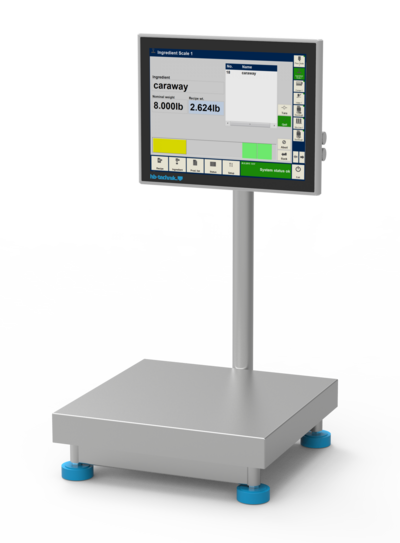

Recipe computer - Backcontrol

Recipe control which allows the linking of all automation modules e.g.

  • silos, big-bags, dumping stations
  • Ingredient dispensers
  • Pre-dough and sour-dough systems
  • Water- and liquid dosing systems
  • Ingredient scales
  • Yeast, oil, milk components etc.

Basic technical information

  • Control panel with 15” touch display in color
  • Integrated PC, built into the control panel
  • Intel Processor 2 GHz
  • Industrial Compact flash card for the operating system
  • Operating system: Windows 7 Embedded
  • 2 x Ethernet 10/100 BASE-T
  • USB ports
  • 24 VDC input voltage
  • IP65 design

Program functions - masks

  • Recipe management
  • Production list
  • Recipe control
  • Single discharge
  • Production and error statistics
  • Unit visualization
  • Pre-dough production
  • Remote maintenance
  • Statistics and analysis / reports
  • Batch traceability
  • Stock control
  • User access authorization
  • User login
  • Multilingual, unit conversion (°C/°F, kg/lbs)
  • Predefined user interface skins (ergonomics)

Additional modules

  • Connection to the mixer or mixing systems
  • Program interfaces
  • hb-batchprocessor batch processing and quality control
  • hb-datacenter database and information interfaces
  • Error information system via telephone
  • Dough temperature control
  • hb - office program

Construction

The panel is an independent IP65 Industrial design PC based on Windows 7 Embedded. The communication takes place via the integrated 100 MBit-Ethernet-interfaces. No fans or moving parts are installed in the completely closed panel housing.
